Case Study
Mains Water Leak Detection in Ascot
Mains Water Leak Investigation
Thermal Imaging, Moisture Meter and Tracer Gas were used to investigate the symptoms and confirm the cause: leak evidence confirmed beneath flooring.
Google Reviews ★★★★★ 5.0 Rating 70+ Reviews Read Reviews- ✓ Leak Located
- ✓ Non-Destructive Investigation
- ✓ Minimal Disruption
- ✓ Repair Completed
The Challenge
Mains Water Leak Investigation
A mains water leak investigation was required at an Ascot property. Visible internal water damage and damp wall evidence meant the suspected leak route needed to be traced before targeted access work could be completed.
- ✓ A mains water leak investigation was required
- ✓ Visible water damage was present around a lower wall and skirting area
- ✓ Flooring and wall finishes required careful investigation
- ✓ Specialist methods were used before targeted access work
Investigation
Investigation Evidence
Selected photos and videos from the investigation sequence showing the evidence-led approach used on site.
Investigation
Tracing The Suspected Mains Water Leak Route
The investigation used thermal imaging, moisture meter checks and tracer gas testing to narrow the likely route of the mains water leak. The affected wall, floor and concealed pipework area were documented as the investigation progressed.
Thermal Imaging
Infrared camera checks helped identify temperature differences linked to the leak investigation.

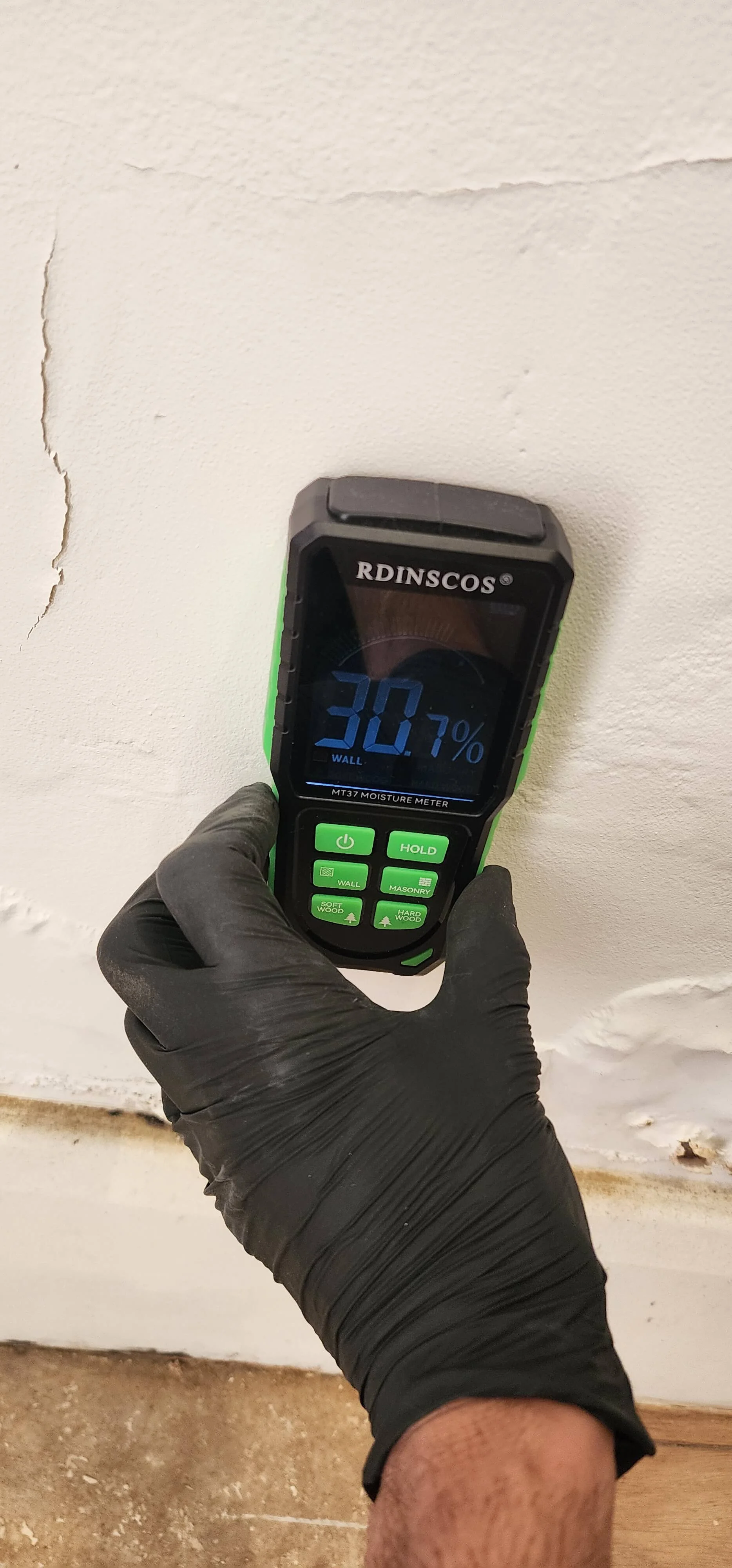

MethodMoisture Meter
Moisture readings helped assess water movement and affected areas around the suspected leak.
MethodTracer Gas
Tracer gas testing helped confirm or narrow concealed leak locations.
Findings
Leak Evidence Confirmed Beneath Flooring
The evidence led to a targeted access area beneath the floor close to the affected wall. Moisture damage, exposed pipework and the recorded investigation evidence supported the suspected mains water leak location.
- Moisture meter readings were recorded around the affected wall

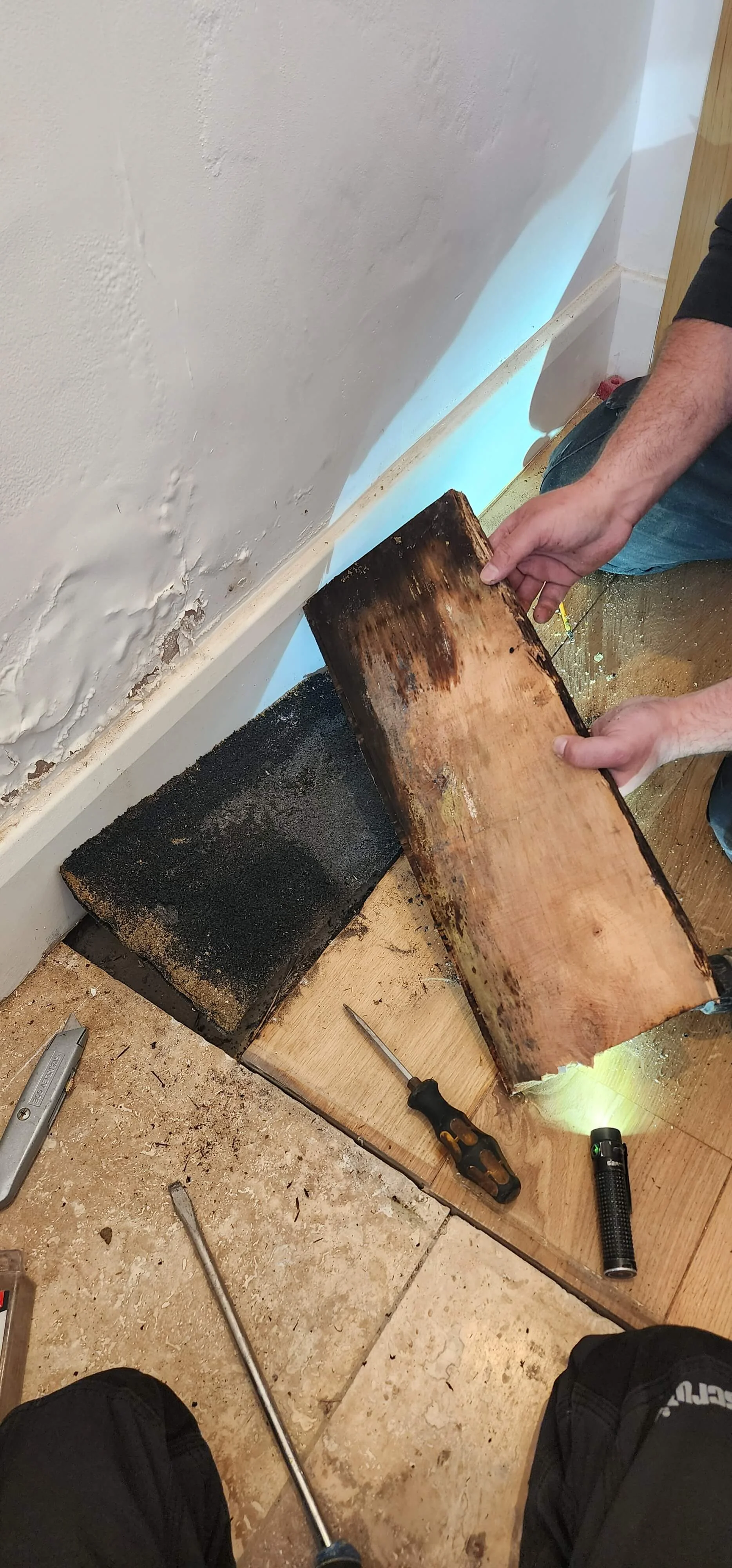

- Flooring was lifted in the targeted investigation area

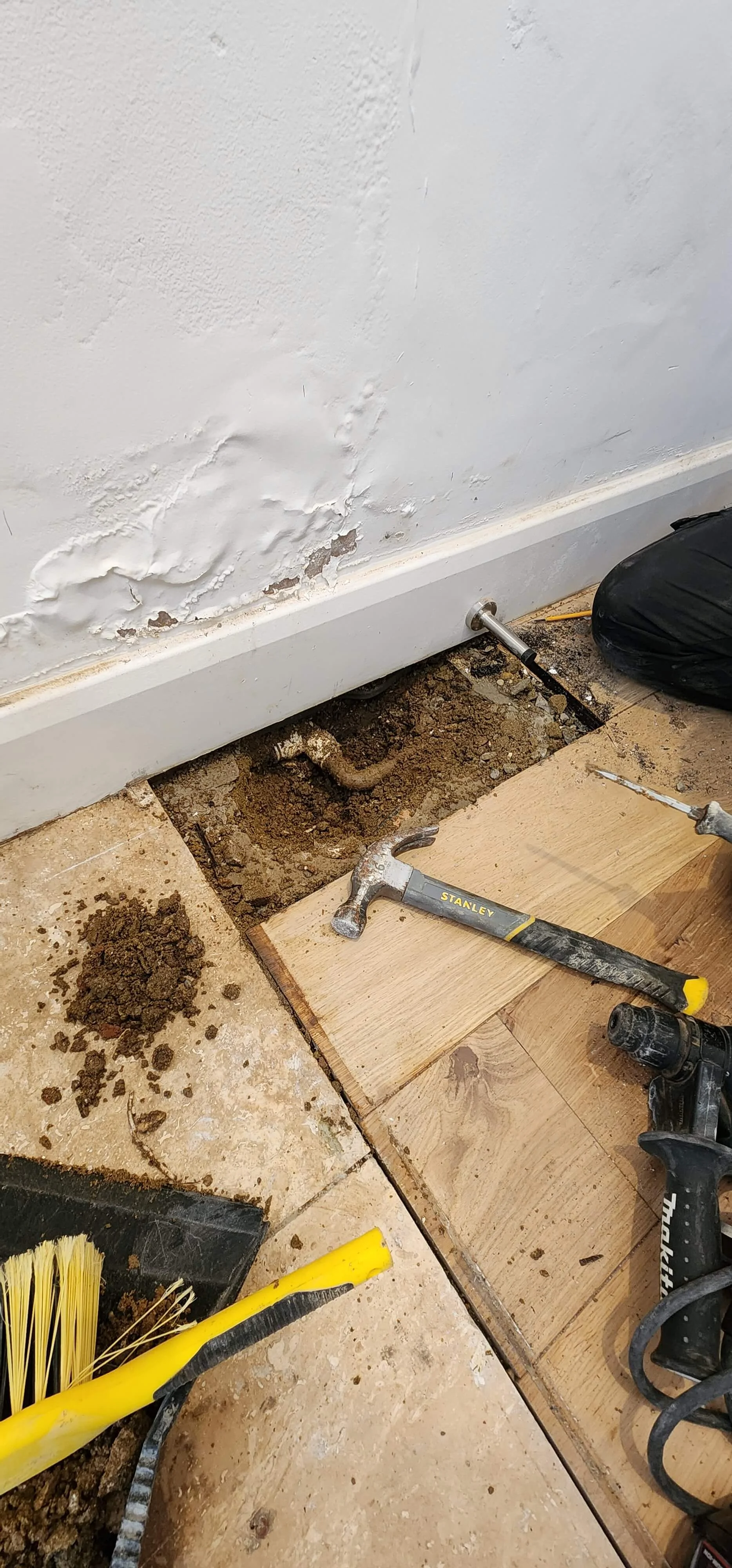

- Pipework was exposed beneath the floor
- The suspected leak area was narrowed using specialist methods
Outcome

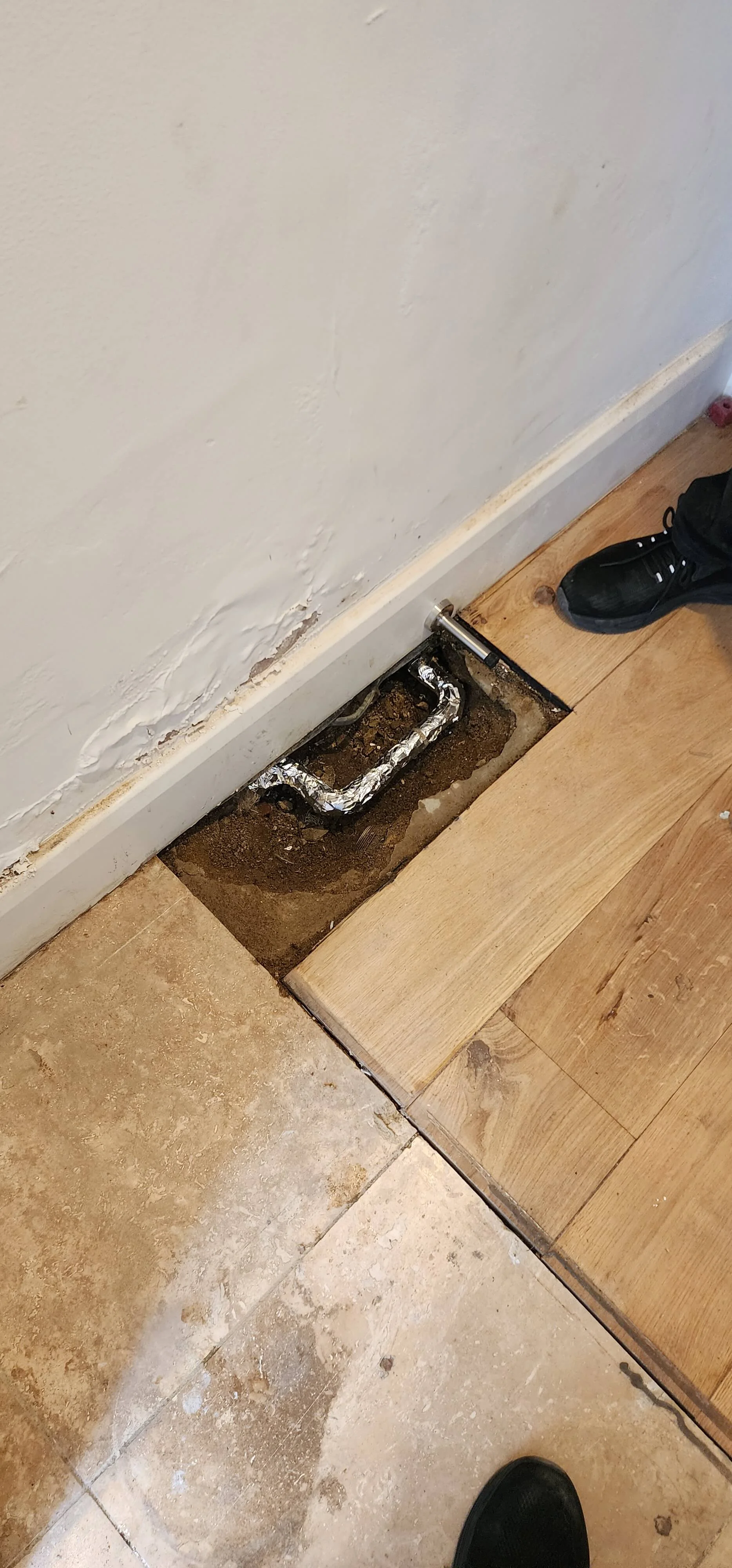

Mains Leak Area Identified For Targeted Repair
- ✓ Leak Located
- ✓ Non-Destructive Investigation
- ✓ Minimal Disruption
- ✓ Repair Completed
The investigation identified the affected mains water leak area so remedial work could be focused around the evidence rather than wider unnecessary disruption.
Local Coverage
Leak Detection In Ascot
This investigation was completed in Ascot, Berkshire.
We regularly carry out leak detection investigations across Ascot and surrounding areas.
